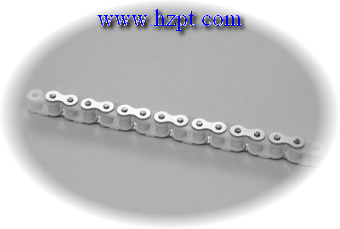

Ploy Steel Chain
  Poly-Steel(PC) Chains are lube-free chains used in food or medicine production. PC Chains can be used in power transmission applications, and, with the addition of attachments on the outer plates,as conveyors.

PC Chains are made to exacting specification from carefully selected engineerng plastic inner links(no rollers) and 304 stainless steel outer links, effectively incorporates the advantages of both material into one chain.


Chain,Chains,Special Chains,Ploy Steel Chain SS25PC,SS35PC,SS40PC,SS50PC,SS60PC
Chain,Chains,Special Chains,Ploy Steel Chain SS25PC,SS35PC,SS40PC,SS50PC,SS60PC


MAXTOP CHAIN NO.
(ANSI)

Pitch

Width

Roller

Plate

Pin

Maximum
 Allowable
Load
kgf

Approx Weight
kg/m

P

W

Dia

Height

Thickness

Dia

Lengths

inch

mm

mm

R

H T1 T2 D F G G1
SS25PC 1/4" 6.35 3.18 3.30 5.80 0.75 1.30 2.30 3.80 4.80 --- 8 0.095
SS35PC 3/8" 9.525 4.76 5.08 9.00 1.20 2.20 3.59 5.80 7.00 7.60 18 0.22
SS40PC 1/2" 12.70 7.94 7.92 11.80 1.50 1.50 3.96 8.20 9.35 10.10 45 0.39
SS50PC 5/8" 15.875 9.53 10.16 15.00 2.00 2.00 5.06 10.,10 11.65 12.60 70 0.58
SS60PC 3/4" 19.05 12.70 11.91 18.10 2.40 2.40 5.95 12.50 14.15 15.40 90 0.82
