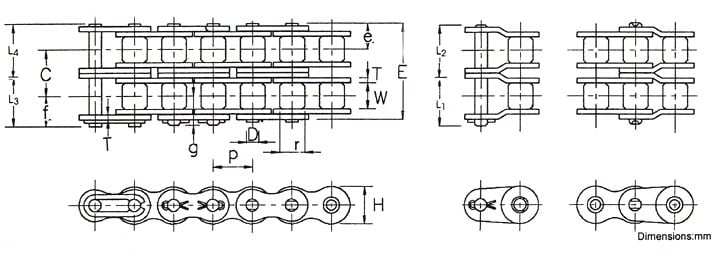

雙排滾子鏈條 DOUBLE STRAND ROLLER CHAIN
|
|
鏈條編號
ANSI NO. |
節距
|
滾子徑
|
滾子
滑環 |
鏈環板厚度
|
口徑
|
口徑
|
口徑
|
圓住距離
|
平均
破斷 強度 |
重量
|
|||
|
P
|
R
|
W
|
H
|
T
|
D
|
L1
|
L2
|
L3
|
L4
|
C
|
|||
|
25-2
|
0.250
6.35 |
0.130
3.3 |
0.116
3.2 |
0.230
5.85 |
0.030
0.75 |
0.091
2.30 |
0.315
8.0 |
0.280
7.1 |
0.315
8.0 |
0.287
7.3 |
0.252
6.4 |
11870
850 |
0.18
0.27 |
|
35-2
|
0.375
9.525 |
0.200
5.08 |
0.189
4.8 |
0.354
9.0 |
0.050
1.25 |
0.141
3.58 |
0.463
11.75 |
0.439
11.75 |
0.463 11.75 |
0.451
11.45 |
0.399
10.1 |
4620
2100 |
0.47
0.70 |
|
40-2
|
0.500
12.70 |
0. 312
7.95 |
0.312
7.95 |
0.472
12.0 |
0.060
1.5 |
0.156
3.96 |
0.665
16.9 |
0.602
15.3 |
0.685
17.4 |
0.602
15.3 |
0.566
14.4 |
7,560
3,440 |
0.87
1.30 |
|
50-2
|
0.625
15.875 |
0.400
10.16 |
0.376
9.55 |
0.591
15.0 |
0.080
2.0 |
0.200
5.08 |
0.833
21.15 |
0.766
19.45 |
0.833
21.15 |
0.766
19.45 |
0.713
18.1 |
12,760
5,800 |
1.43
2.13 |
|
60-2
|
0.750
19.05 |
0.469
11.91 |
0.500
12.7 |
0.709
18.0 |
0.094
2.4 |
0.234
5.95 |
1.028
26.1 |
0.949
24.1 |
1.047
26.6 |
0.949
24.1 |
0.897
22.8 |
17,820
8,100 |
2.08
3.1 |
|
80-2
|
1.000
25.40 |
0.625
15.88 |
0.626
15.9 |
0.945
24.0 |
0.125
3.2 |
0.312
7.94 |
1.317
33.45 |
1.219
30.95 |
1.337
33.95 |
1.337
33.95 |
1.153
29.3 |
32,120
14,600 |
3.55
5.3 |
|
100-2
|
1.250
31.75 |
0.750
19.15 |
0.755
19.15 |
1.181
30.0 |
0.156
4.0 |
0.375
9.53 |
1.614
41.0 |
1.492
37.9 |
1.614
41.0 |
1.614
41.0 |
1.408
35.8 |
48,400
22,000 |
5.43
8.1 |
|
120-2
|
1.500
38.10 |
1.004
25.55 |
1.004
25.55 |
1.417
36.0 |
0.187
4.8 |
0.437
11.11 |
1.012
51.1 |
1.882
47.8 |
2.012
51.1 |
2.012 51.1 |
1.789
45.4 |
67,760
30,800 |
7.97
11.9 |
|
140-2
|
1.750
44.45 |
1.004
25.5 |
1.004
25.5 |
1.654
442.0 |
0.219
5.6 |
0.500
12.70 |
2.215
56.25 |
2.030
51.55 |
2.215
56.25 |
2.215
56.25 |
1.924
48.9 |
91,960
41,800 |
10.12
15.1 |
|
160-2
|
2.000
50.80 |
1.256
31.9 |
1.256
31.9 |
1.850
47.0 |
0.250
6.4 |
0.562
14.29 |
2.604
66.15 |
2.419
61.45 |
2.604
66.15 |
26.04
66.15 |
2.305
58.5 |
115720
52600 |
13.13
19.6 |
|
180-2
|
2.250
57.15 |
1.409
35.80 |
1.409
35.80 |
2.087
53.0 |
0.281
7.2 |
0.687
17.46 |
2.969
75.4 |
2.740
69.6 |
2.969
75.4 |
2.969
75.4 |
2.592
65.8 |
146,960
66,800 |
17.75
26.49 |
|
200-2
|
2.500
63.50 |
1.504
38.2 |
1.504
38.2 |
2.283
58.0 |
0.312
8.0 |
0.781
19.84 |
3.193
81.1 |
2.984
75.8 |
3.193
81.1 |
3.193
81.1 |
2.817
71.6 |
189,640
86,200 |
21.78
32.5 |
|
240-2
|
3.000
76.20 |
1.890
48.0 |
1.890
48.0 |
2.836
72.0 |
0.375
9.5 |
0.937
23.80 |
3.925
99.7 |
3.654
92.8 |
3.925
99.7 |
3.925
99.7 |
3.458
87.8 |
290,400
132,000 |
32.83
49.0 |
