MFC MFCS Setscrew type

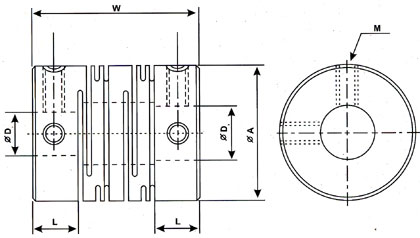

DIMESION

Product No

產品編號

A
L
W
Stock Bores
標準孔徑
D1×D2(公差H8)
M
Min
D1
Max
D2
MFC-16
16
6.5
23
4
8
M3
MFC-20
20
7.5
26
5
10
M3
MFC-25
25
8.5
31
6
12
M4
MFC-32
32
12
41
6
14
M4
MFC-40
40
17
56
8
16
M5
MFC-50
50
21
71
10
18
M6
MFCS-16
16
6.5
23
4
8
M3
MFCS-20
720
7.5
26
5
10
M3
MFCS-25
25
8.5
31
6
12
M4
MFCS-32
32
12
41
6
14
M4
MFCS-40
40
17
56
8
16
M5
MFCS-50
50
21
71
10
18
M6

When Ordering/產品訂購

When Placing an order, make sure to include product No. and stock bores (both sides) of product.

MFC-25
Product: D1 D2
