MXL Pulley

Pulley Groove Profile

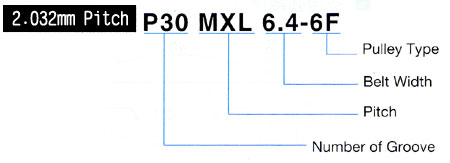

 Pully Code
Pulley Type
 W¡EA¡Efd Dimensions for standard belt width (mm)
Belt Width
3.2
4.8
6.4
7.9
9.5
12.7
W
7.5
9.1
10.7
12.2
13.9
17.5
A
4.2
5.8
7.4
8.9
10.6
14.2
fd
1.65
1.65
1.65
1.65
1.65
1.65

Pulley Dimension Table

No.of
Grooves
PD
OD
FID
FOD

10
6.47
5.96

11
12
13
14
15
7.11
7.76
8.41
9.06
9.70
6.61
7.25
7.90
8.55
9.19
5.0
6.0
6.0
7.0
12
13
13
14
16
17
18
19
20
10.35
11.00
11.64
12.29
12.94
9.84
10.49
11.13
11.78
12.43
7.0
8.0
8.0
8.0
9.0
14
16
16
16
17
21
22
23
24
25
13.58
14.23
14.88
15.52
16.17

13.07
13.72
14.37
15.02
15.66

9.0
12.0
12.5
12.5
12.5
17
21
21
21
24
26
27
28
29
30
16.82
17.46
18.11
18.76
19.40
16.31
16.96
17.60
18.25
18.90
12.5
12.5
12.5
12.5
15.0
24
24
24
24
25
31
32
33
34
35
20.05
20.70
21.34
21.99
22.64
19.54
20.19
20.84
21.48
22.13
15.0
15.0
17.5
17.5
17.5
25
25
28
28
28
36
37
38
39
40
23.29
23.93
24.58
25.23
25.87
22.78
23.42
24.07
24.72
25.36
17.5
20.0
20.0
20.0
20.0
28
30
30
30
32
41
42
43
44
45
26.52
27.17
27.81
28.46
29.11
26.01
26.66
27.30
27.95
28.60
20.0
22.2
22.2
25.0
25.0
32
33
33
35
35
46
47
48
49
50
29.75
30.40
31.05
31.69
32.34
29.25
29.89
30.54
31.19
31.83
25.0
25.0
27.5
27.5
27.5
35
35
40
40
40
No.of
Grooves
PD
OD
FID
FOD
51
52
53
54
55
32.99
33.63
34.28
34.93
35.57
32.48
33.13
33.77
34.42
35.07
27.5
27.5
27.5
27.5
31.0
40
40
40
40
45
56
57
58
59
60
36.22
36.87
37.51
38.16
38.81
35.71
36.36
37.01
37.65
38.30
31.0
31.0
31.0
31.0
31.0
45
45
45
45
45
61
62
63
64
65
39.46
40.10
40.75
41.40
42.04
38.95
39.59
40.24
40.89
41.53

31.0
31.0
36.0
36.0
36.0
45
45
48
48
48
66
67
68
69
70
42.69
43.34
43.98
44.63
45.28
42.18
42.83
43.47
44.12
44.77

36.0
36.0
36.0
36.0
36.0
48
48
52
52
52
71
72
73
74
75
45.92
46.57
47.22
47.86
48.51
45.42
46.06
46.71
47.36
48.00

36.0
36.0
41.0
41.0
41.0
52
52
55
55
55
76
77
78
79
80
49.16
49.80
50.45
51.10
51.74
48.65
49.30
49.94
50.59
51.24

41.0
41.0
46.0
46.0
46.0

55
55
58
58
58
81
82
83
84
85
52.39
53.04
53.68
54.33
54.98
51.88
52.53
53.18
53.82
54.47
46.0
46.0
46.0
46.0
46.0
58
58
61
61
61
86
87
88
89
90
55.63
56.27
56.92
57.57
58.21
55.12
55.76
56.41
57.06
57.70
46.0
51.0
51.0
51.0
51.0
61
67
67
67
67
91
92
93
94
95

58.86
59.51
60.15
60.80
61.45

58.35
59.00
59.64
60.29
60.94

51.0
51.0
51.0
51.0
51.0

67
67
67
67
67
No.of
Grooves
PD
OD
FID
FOD
96
97
98
99
100
62.09
62.74
63.39
64.03
64.68
61.59
62.23
62.88
63.53
64.17

51.0
56.0
56.0
56.0
56.0

67.0
70.0
70.0
70.0
70.0
101
102
103
104
105
65.33
65.97
66.62
67.27
67.91
64.17
65.47
66.11
66.76
67.41
56.0
61.0
61.0
61.0
61.0
70.0
76.0
76.0
76.0
76.0
106
107
108
109
110
68.56
69.21
69.86
70.50
71.15
68.05
68.70
69.35
69.99
70.64
61.0
61.0
65.0
65.0
65.0
76.0
76.0
77.0
77.0
77.0
111
112
113
114
115
71.80
72.44
73.09
73.74
74.38
71.29
71.93
72.58
73.23
73.87
65.0
65.0
66.0
66.0
66.0
77.0
77.0
83.0
83.0
83.0

116
117
118
119
120

75.03
75.68
76.32
76.97
77.62
74.52
75.17
75.82
76.46
77.11
66.0
66.0
66.0
66.0
66.0
83.0
83.0
83.0
83.0
83.0
121
122
123
124
125

78.26
78.91
79.56
80.20
80.85

77.76
78.40
79.05
79.70
80.34
74.0
74.0
74.0
74.0
74.0
86.0
86.0
86.0
86.0
86.0
No.of
Grooves
PD
OD
FID
FOD
126
127
128
129
130
81.50
82.14
82.79
83.44
84.08
80.99
81.64
82.28
82.93
83.58

74.0
74.0
77.0
77.0
77.0
86.0
86.0
90.0
90.0
90.0
131
132
133
134
135
84.73
85.38
86.03
86.67
87.32
84.22
84.87
85.52
86.16
86.81

77.0
77.0
81.0
81.0
81.0

90.0
90.0
93.0
93.0
93.0
136
137
138
139
140
87.97
88.61
89.26
89.91
90.55
87.46
88.10
88.75
89.40
90.04
81.0
84.0
84.0
84.0
84.0
93.0
96.0
96.0
96.0
96.0
141
142
143
144
145
91.20
91.85
92.49
93.14
93.79
90.69
91.34
91.99
92.63
93.28
84.0
84.0
87.0
87.0
87.0
96.0
96.0
99.0
99.0
99.0
146
147
148
149
150
94.43
95.08
95.73
96.37
97.02
93.93
94.57
95.22
95.87
96.51
87.0
87.0
90.0
90.0
90.0
99.0
99.0
102.0
102.0
102.0

Pulley Pitch
Diameter=P¡ÑN/£k
Outside Diameter (OD)
=PD-2¡ÑPLD

P¡GBelt Pitch(mm)
N¡GNo.of Grooves
£k¡GRatio of
Cireumference
MXL¡EPLD¡G0.254mm
