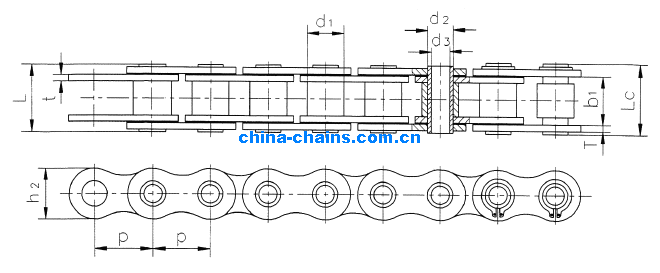

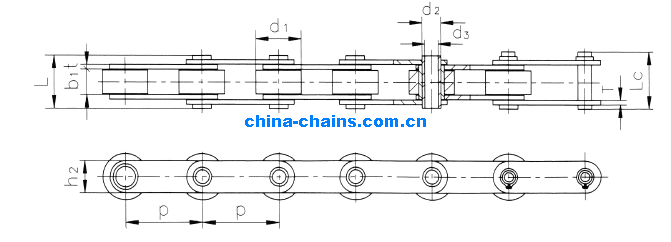

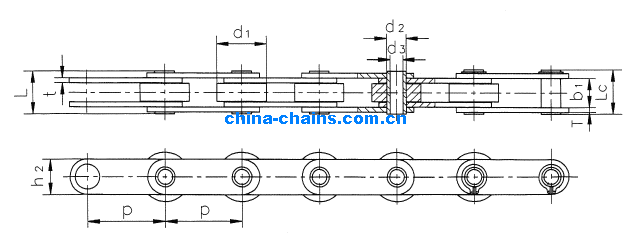

Hollow pin chains (A) (B) (C) (D)

A stainless steel, chains, chain, china, roller chains, Conveyor Chains, Silent chains, leaf, hollow pin, flap top, short gauge

South Chain No. Pitch Roller diameter Width between inner plates Pin diameter Pin length Inner plate depth plate thickness Ultimate tensile strength Average tensile strength Weight per meter Type form
P d1(max) b1(min) d2(max) d3(min) L(max) Lc(max) h2(max) t/T(max) Q(min) Q0 q
mm mm mm mm mm mm mm mm mm kN kN kg/m
08BHPFSS 12.700 8.50 7.75 6.55 4.50 16.4 17.6 11.80 1.6/1.3 6.66 7.26 0.56 A
40HPSS 12.700 7.95 7.85 5.63 4.00 16.5 17.6 12.00 1.50 6.60 7.32 0.54 A
50HPSS 15.875 10.16 9.40 7.03 5.13 20.7 21.9 15.09 2.03 12.00 13.56 0.91 A
60HPSS 19.050 11.91 12.70 8.31 6.00 25.8 26.8 18.00 2.42 14.40 16.14 1.29 A
60HPF1SS 19.050 11.91 12.70 8.31 5.01 25.5 26.8 18.00 2.42 16.80 18.54 1.37 A
80HPSS 25.400 15.88 15.75 11.40 8.05 32.5 33.8 24.00 3.25 30.00 34.98 2.26 A
C2040HPSS 25.400 7.95 7.85 5.63 4.00 16.5 17.6 12.00 1.50 6.60 7.56 .046 B
C2050HPSS 31.750 10.16 9.40 7.22 5.12 20.5 21.8 15.00 2.03 12.24 13.68 0.76 B
C2060HPSS 38.100 11.91 12.70 8.31 6.00 25.8 26.8 17.00 2.42 14.40 16.26 1.02 B
C2080HPSS 50.800 15.88 15.75 11.40 8.05 32.5 33.8 24.00 3.25 30.00 33.12 1.81 B
HP50F1SS 50.000 26.00 14.50 20.00 14.70 35.3 36.2 40.00 3.10 18.00 20.16 3.98 B
