Welded Steel Offset Type Mill Chain

 Chain,Chains,Special Chains,Welded Steel Offset Type Mill Chain WR78-R,WS78-R,WR82-R,WH82-R,WR82XHD-R,WS124-R,WH124-R,WH106-R,WH111-R,WH132-R,WH155-R,WS157-R

CHAIN

NUMBER

PITCH

MIN

ULTIMATE

STRENGTH

KGS

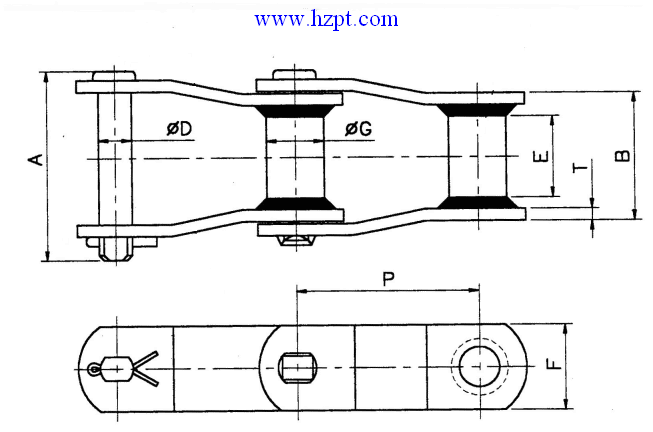

DIMENSION---MM

INCH MM A B(max) D T E(min) F G
WR78-R 2.609 66.27 9530 77 50.80 12.70 6.40 28.60 28.40 22.2
WS78-R 9530 32.00
WR82-R 3.075 78.10 10210 86 57 14.29 6.40 31.80 32.00 27
WH82-R 13380
WR82XHD-R 17240 97 60.33 19.05 9.50 28.58 38.10 31.75

Chain,Chains,Special Chains,Welded Steel Offset Type Mill Chain WR78-R,WS78-R,WR82-R,WH82-R,WR82XHD-R,WS124-R,WH124-R,WH106-R,WH111-R,WH132-R,WH155-R,WS157-R



Chain,Chains,Special Chains,Welded Steel Offset Type Mill Chain WR78-R,WS78-R,WR82-R,WH82-R,WR82XHD-R,WS124-R,WH124-R,WH106-R,WH111-R,WH132-R,WH155-R,WS157-R

CHAIN

NUMBER

PITCH

MIN

ULTIMATE

STRENGTH

KGS

DIMENSION---MM

INCH MM A B(max) D T E(min) F G
WS124-R 4.000 101.60 17240 110 70 19.05 9.50 41.30 38.10 36.6
WH124-R 4.000 101.60 22900 110 70 19.05 9.50 41.30 38.10 36.6
WH124HD-R 4.083 103.70 36300 118.67 76.20 22.23 12.70 41.30 50.80 41.28
WS132-R 6.050 153.67 28140 154.6 111.76 25.25 12.70 76.20 50.80 44.45
WH111-R 4.760 120.90 17240 124 84.8 19.05 9.50 57.20 38.10 36.6
WH106-R 6.000 152.40 17240 110.49 70.61 19.05 9.50 41.30 38.10 36.6
WH106XHD-R 6.050 153.67 55290 117 76.20 25.25 12.70 38.10 50.80 44.45
WH132-R 6.050 153.67 38580 154.6 111.76 25.25 12.70 72.90 50.80 44.45
WH150-R 6.050 153.67 38580 162 111.76 25.25 12.70 72.90 63.50 44.45
WH155-R 6.050 153.67 50000 164.5 111.25 28.42 14.27 70.00 63.50 44.45
WS157-R 6.050 153.67 56320 173.6 117.35 28.52 15.88 72.90 63.50 44.45
WH157-R 6.050 153.67 56320 173.6 117.35 28.52 15.88 72.90 63.50 44.45
WHX159-R 6.125 155.57 92690 174 117.35 31.45 15.88 73.00 76.20 50.8
