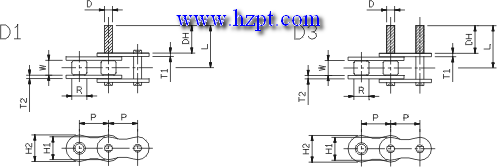

D1&D3  Attachments
Chain,Chains,Attachment Chains,D1&D3 Attachments 35,40,41,50,60,80,100,120,140,160,A2040,A2050,C2040,C2042,C2050,C2052,C2060H,C2122H



MAXTOP CHAIN NO.

Pitch x Width

Roller

Plate

Pin

Average
 Ultimate
Strength
kgf

P x W

Dia

Height

Thickness

Dia

Lengths

inch

mm

R

H1 H2 T1 T2 D *DH L
*35 3/8" x 3/16" 9.525 x 4.76 5.08 7.60 9.00 1.20 1.20 3.59 9.52 14.52 1050
40 1/2" x 5/16" 12.70 x 7.94 7.92 10.20 11.80 1.50 1.50 3.96 9.52 16.72 1850
41 1/2" x 1/4" 12.70 x 6.35 7.77 8.50 9.70 1.20 1.20 3.58 9.52 15.40 1200
50 5/8" x 3/8" 15.875 x 9.53 10.16 13.00 14.80 2.00 2.00 5.06 11.91 20.96 3100
60 3/4" x 1/2" 19.05 x 12.70 11.91 15.50 17.50 2.40 2.40 5.95 14.27 25.60 4400
80 1" x 5/8" 25.40 x 15.88 15.88 20.40 24.00 3.10 3.10 7.94 19.05 33.48 7800
100 1-1/4" x 3/4" 31.75 x 19.05 19.05 24.80 30.10 3.90 3.90 9.52 23.83 41.83 11800
120 1-1/2" x 1" 38.10 x 25.40 22.23 30.00 35.00 4.70 4.70 11.10 28.60 51.25 15500
140 1-3/4" x 1" 44.45 x 25.40 25.4 36.20 42.00 5.60 5.60 12.70 33.30 57.70 21500
160 2" x 1-1/4" 50.80 x 31.75 28.58 41.40 48.00 6.40 6.40 14.28 38.10 67.35 27500

                                     *DH length (Pin extension) per requested



Chain,Chains,Attachment Chains,D1&D3 Attachments 35,40,41,50,60,80,100,120,140,160,A2040,A2050,C2040,C2042,C2050,C2052,C2060H,C2122H



MAXTOP CHAIN NO.

Pitch x Width

Roller

Plate

Pin

Average
 Ultimate
Strength
kgf

P x W

Dia

Height

Thickness

Dia

Lengths

inch

mm

R

H T1 T2 D *DH L
A2040 1" x 5/16" 25.40 x 7.94 7.92 10.10 1.50 1.50 3.96 9.52 16.72 1850
A2050 1-1/4" x 3/8" 31.75 x 9.53 10.16 12.60 2.00 2.00 5.06 11.91 20.96 3100
C2040 1" x 5/16" 25.40 x 7.94 7.92 11.70 1.50 1.50 3.96 9.52 16.72 1850
C2042 1" x 5/16" 25.40 x 7.94 15.88 11.70 1.50 1.50 3.96 9.52 16.72 1850
C2050 1-1/4" x 3/8" 31.75 x 9.53 10.16 14.60 2.00 2.00 5.06 11.91 20.96 3100
C2052 1-1/4" x 3/8" 31.75 x 9.53 19.05 14.60 2.00 2.00 5.06 11.91 20.96 3100
C2060H 1-1/2" x 1/2" 38.10 x 12.70 11.91 17.10 3.10 3.10 5.95 14.27 27.07 4400
C2062H 1-1/2" x 1/2" 38.10 x 12.70 22.23 17.10 3.10 3.10 5.95 14.27 27.07 4400
C2080H 2" x 5/8" 50.80 x 15.88 15.88 23.00 3.90 3.90 7.94 19.05 35.18 8000
C2082H 2" x 5/8" 50.80 x 15.88 28.58 23.00 3.90 3.90 7.94 19.05 35.18 8000
C2100H 2-1/2" x 3/4" 63.50 x 19.05 19.05 28.90 4.70 4.70 9.52 23.80 43.40 12000
C2102H 2-1/2" x 3/4" 63.50 x 19.05 39.67 28.90 4.70 4.70 9.52 23.80 43.40 12000
C2120H 3" x 1" 76.20 x 25.40 22.20 35.00 5.60 5.60 11.10 28.60 53.08 16000
C2122H 3" x 1" 76.20 x 25.40 44.45 35.00 5.60 5.60 11.10 28.60 53.08 16000

                                           *DH length (Pin extension) per requested
