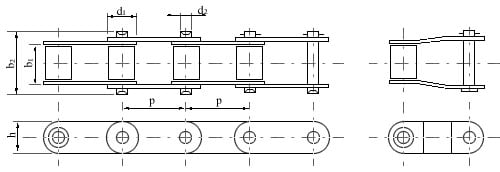

CHINA AGRICULTURAL CHAIN         CA Series



ISO chain No.

pitch
P
mm

roller dia
d1(max)
mm

width between
inner plates
b1(min)mm

plate depth
hmm

pin dia
d2
mm

pin length b2
mm

breaking load
Q(min)
KN

CA550

41.4

16.7

19.81

19.05

7.16

34.5

45.0

CA550/45

41.4

15.34

19.81

19.05

7.16

34.5

45.0

CA550/55

41.4

17.78

19.81

18.05

7.16

34.5

45.0

CA555

41.4

16.7

12.7

18.05

7.16

29.3

56.0

CA557

41.4

17.8

19.81

23.1

7.32

37.1

64.0

CA520

42.01

17.21

24.52

19.05

7.16

41.5

47.5

C2060H

38.1

11.91

12.75

18

5.94

28.6

31.1





ISO chain No.

pitch
P
mm

roller dia
d1(max)
mm

width between
inner plates

b1(min)mm

plate depth
h
mm

pin dia
d2
mm

pin length
b2
mm

breaking load
Q(min)
KN

CA395

38.4

10.38

19

17.2

6.92

31.4

36.0
